Minyak Engine Motul Turbolight 4100 10W40 Ada di jual..
RM 155
013-3010058/012-3435165
Friday, October 28, 2011
Thursday, October 27, 2011

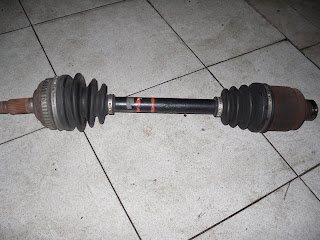

Drive Shaft Type R
DriveShaft Kiri Type R..Item buka pada EK9 hafkat..Condition masih baik..Driveshaft boot Seal pun masih original kilang lagi..
Selling Price : ITEM SOLD
Call/SMS : 013-3010058/012-3435165

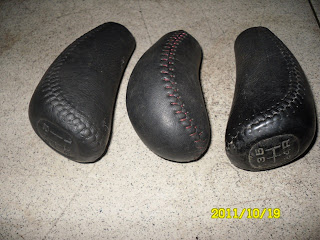

Gear Knob Manual
Gear Knob Manual Untuk Civic EF/EG/EK/EJ
Item buka pada hafkat EK4,EG6,EK3 ViRS..
Harga Jualan : RM 75
Call/SMS 013-3010058/012-3435165
ITEM SOLD
ITEM SOLD
Sunday, October 23, 2011
EK4 Tanabe Sustec Damper
A set of Tanabe Sustec Damper For Civic EK..
Price : RM 1450
Call/SMS : 013-3010058/012-3435165
NGK R09 Plug Cable For B-Series Engine
NGK R09 Plug Cable
Take out from EK9 Halfcut..
For-B Series Engine
Items Like new..
Selling Price : RM250Nett
Call/sms
013-3010058/012-3435165
ITEM SOLD
Friday, October 21, 2011
EK3 ViRS Front Bodypart
1 set of EK3 ViRS Front BodyPart for Sale..
Colour DarK Grey..Barang adalah seperti yang ada pada gambar..
Harga Jualan = RM 2250
Call/SMS = 013-3010058/012-3435165
Sri Gombak
ITEM SOLD
ITEM SOLD
Tuesday, October 11, 2011

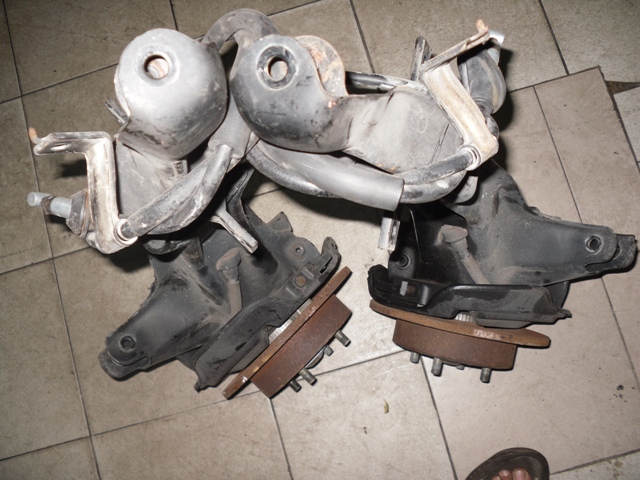

DC2 ITR 2000Spec Halfcut
DC2 Type R 2000 Spec Halfcut
LSD 4.785 Fd Gearbox,
LSD 4.785 Fd Gearbox,
5 Lugs Knuckle
OEM 4-1 Extractor Header.
Engine Mileage 104XXX KM
Call if interest..
013-3010058/012-3435165
SOLD OUT
Spoon Bar For EK4/EG9
1 Set of Spoon Strut Bar.
For EG/EK/DC2
Selling Price RM 750
Call/SMS
013-3010058/012-3435165

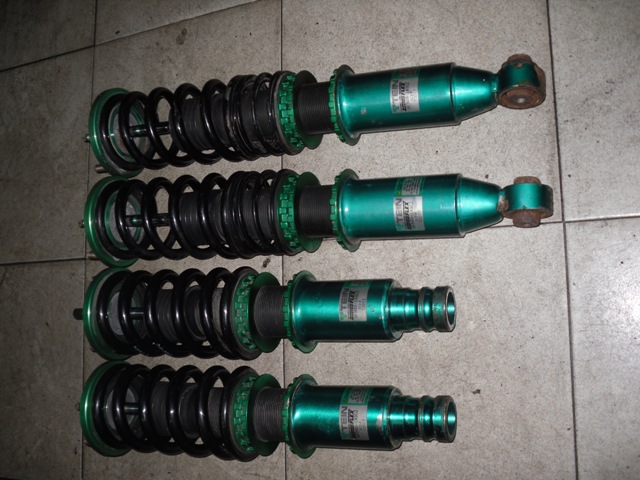

Tein MonoFlex Adjustble For EG,DC2
| RIDE HEIGHT | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
| ||||||||||||||||||||||||||
| SPRING | |||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
| ||||||||||||||||||||||||||||||||||
Tein MonoFlex Adjustble
High Low Soft Hard
Taken Out From DC2 Type R Halfcut
For EG/DC2
Excellent Condition
Selling Price RM 2990
Call/SMS
013-3010058/012-3435165
Wednesday, October 5, 2011
B-Series
B16A Series
B16A
Note: All JDM B16A engines are stamped ‘B16A’ (with no number after the “A” to identify version).
JDM - JAPANESE DOMESTIC MARKET, BARANG KERETA YANG HANYA UNTUK KEGUNAAN DALAM JEPUN SAHAJA N BUKAN UNTUK DIESKPORT...JDM KE MALAYSIA MELALUI HALF-CUT
VTEC
Found in:
1988-1991 JDM Honda Integra RSi/XSi (DA6/DA8)
1988-1991 JDM Honda CRX SiR (EF8)
1988-1991 JDM Honda Civic SiR (EF9)
Displacement: 1,595 cc (97.3 cu in) 1.6 liter
Compression: 10.2:1
Rod/stroke ratio: 1.74
Power: 158 hp (118 kW) @ 7600 rpm & 111 ft•lbf (150 N•m) @ 7000 rpm
Transmission: S1/J1/Y1
Redline: 8200 rpm
1992-1996 JDM Honda CR-X del Sol SiR (EG2)
1992-2000 JDM Honda Civic SiRII (EG6/EG9/EK4)
Displacement: 1,595 cc (97.3 cu in)
Compression: 10.4:1
Power: 170 hp (130 kW) @ 7800 rpm & 116 ft•lbf (157 N•m) @ 7300 rpm
Valve Lift: IN 10.7 mm (0.42 in), EX 9.4 mm (0.37 in)
Inlet Valve Diamter: 33 by 2 millimetres (1.3 in × 0.079 in)
Transmission: S4C/Y21 (Some with LSD)
Redline: 8200 rpm
B16A1
VTEC
Found in:
1990-1991 EDM Honda CRX 1.6i-VT (EE8)
1990-1991 EDM Honda Civic 1.6i-VT (EE9)
Displacement: 1,595 cc (97.3 cu in) 1.6 liter
Bore×Stroke: 81.0×77.4 mm (3.19×3.05 in)
Compression: 10.2:1
Power: 150 hp (110 kW) @ 7600 rpm
Torque: 111 ft•lbf (150 N•m) @ 7000 rpm
Redline: 8200 rpm
Transmission: y2
B16A2
VTEC
Found in:
1992-2000 Honda Civic EDM VTi (EG6/EG9 & EK4)
1992-1997 Honda Civic del Sol EDM VTi (EG)
1999-2000 Honda Civic USDM Si (EM1)
1999-2000 Honda Civic CAN SIR EJ
Displacement: 1,595 cc (97.3 cu in)
Bore×Stroke: 81.0×77.4 mm (3.19×3.05 in)
Compression: 10.2:1
Power: 160 hp (118 kW) @ 7600 rpm & 111 ft•lbf (151 N•m) @ 7000 rpm
Transmission: Y21 or S4C
B16A3
VTEC
Found in:
1994-1995 Del Sol VTEC
Displacement 1,595 cc (97.3 cu in)
Power (bhp@rpm): 160 hp (120 kW) @ 7,600 rpm & 118 ft•lbf (160 N•m) @ 7,500 rpm
Transmission: Y21
B16A4
VTEC
Found in:
1996-2000 Honda Civic SiRII (Asian version) (EK4)
Displacement: 1,595 cc (97.3 cu in)
Compression: 10.4:1
Power: 170 hp (127 kW) @ 7800 rpm & 116 ft•lbf (157 N•m) @ 7300 rpm
Redline: 8200 rpm
Transmission: Y21
B16A6
VTEC
Found in:
1996-2000 Honda Civic - Middle East & South Africa VTEC (EK)
Displacement: 1,595 cc (97.3 cu in)
Compression: 10.2:1
Power: 158 hp (118 kW) @ 7600 rpm & 111 ft•lbf (151 N•m) @ 7000 rpm
Transmission: S4C
B16B (Type R) VTEC
Found in:
1997-2000 JDM Civic Type R[EK9]
Displacement: 1,595 cc (97.3 cu in)
Compression: 10.8:1
Bore: 81 mm (3.2 in)
Stroke: 77.4 mm
Rod/Stroke ratio: 1.84:1
Rod Length: 142.42 mm (5.607 in)
Power: 185 hp (134 kW) @ 8200 rpm & 110 ft•lbf (155 Nm) @ 7500 rpm
Redline: 8500 rpm
Transmission: S4C With LSD
Vtec engagement @ 5,800 rpm
Note: This engine uses the same block as the Integra Type R, which is taller than the B16a block, but with a crank the same stroke as the b16a. It uses longer rods to accommodate for this, which is why the Rod/Stroke ratio is higher than a standard B16. It is basically a ‘Destroked B18C Type R engine’
B18 Series
B18C (Type R)
VTEC
Found in:
JDM Honda Integra Type R
Power: 200 hp (150 kW) @ 8000 rpm
Rev-limit: 8,900 rpm
VTEC engagement@5,800 rpm
137 ft•lbf (186 N•m) @ 6200 rpm
Transmission Type: 5-speed standard with LSD
Displacement: 1,797 cc (109.7 cu in)
Compression:y 11.1:1
Bore: 81 mm (3.189 in)
Stroke: 87.2 mm (3.433 in)
Rod Length: 137.9 mm (5.429 in)
Rod/Stroke Ratio: 1.58
Transmission: J4D (96specR w/ LSD)N3E (98specR w/LSD)
B18C1
VTEC
Found in:
1994-2001 Acura Integra GS-R (DC2)
Redline: 8000 rpm (limiter @ 8200 rpm)
Power: 170 hp (127 kW) @ 7600 rpm & 128 ft•lbf (173 N•m) @ 6200 rpm
Transmission: s80
B18C2
VTEC
Found in:
1994-1999 Honda Integra VTi-R
AUDM Spec 1993-1999 Honda Integra VTi-R
Displacement: 1,797 cc (109.7 cu in)
Compression: 10.6:1
Power: 168 hp (125 kW) @ 7600 rpm
Torque: 128 ft•lbf (175 N•m) @ 6200 rpm
Redline: 8200 rpm
Fuel Cut: 8300 rpm
Transmission: Y80 (No LSD) 5-Speed Manual Transaxle
0-100 km/h : <7.3 seconds
B18C3
VTEC
Found in:
1995-1998 Acura Integra Type R
Power: 193 PS/189 hp (141 kW) @ 8200 rpm & 127 ft•lbf/172 N•m @ 7500 rpm
B18C4
VTEC
Found in:
1996-2000 UK Civic 1.8i VTi 5-door Hatch (MB6)
1996-2000 UK Civic Aerodeck 1.8i VTi 5-door Wagon (MC2)
1998-1999 EU Civic Aerodeck 1.8i VTi 5-door Wagon (MC2)
1998-1999 EU Civic 1.8i VTi 5-door Hatch (MB6)
Displacement: 1,797 cc (109.7 cu in)
VTEC engagement@4,400 rpm
IAB open@5,750 rpm
Compression: 10.0:1
Power: 169 hp (124 kW) @ 7600 rpm & 117 ft•lbf (158 N•m) @ 6200 rpm
Limit: 8,100 rpm
Transmission: S9B w/Torsen LSD.
0/100 km/h : 8.3 seconds (8.8 Aerodeck)
B18C5
VTEC
Found in: USDM DC2 Acura Integra Type-R (Integra Type-R)
1997-2001 Integra Type-R (**Note: This model was not produced for the 1999 production year)
Displacement: 1,797 cc (109.7 cu in)
Compression: 10.6:1
Bore: 81 mm (3.189 in)
Stroke: 87.2 mm (3.433 in)
Rod Length: 137.9 mm (5.429 in)
Rod/Stroke Ratio: 1.58
Power: 195 hp (145 kW) @ 8200 rpm & 130 ft•lbf (180 N•m) @ 7500 rpm
Transmission: S80 w/LSD
Vtec engagement @ 6,000 rpm
B18C6
VTEC
Found in:
1998-2001 Honda Integra UK and Euro Spec Type R
Type: 1.8 litre 16v DOHC 4 cylinder in-line
Displacement: 1,797 cc (109.7 cu in)
Compression: 11.1:1
Air intake diameter: 62 mm (2.4 in)
Bore: 81 mm (3.189 in)
Stroke: 87.2 mm (3.433 in)
Rod Length: 137.9 mm (5.429 in)
Rod/Stroke Ratio: 1.58
Power: 190 PS/140 kW @ 7900 rpm & 131 ft•lbf/178 N•m @ 7300 rpm
Redline: 8400 rpm
Rev limiter: 8700 rpm
Vtec engagement: 5700 rpm
Transmission: S80 w/LSD
B18C7
VTEC
Found in:
1996- Honda Integra Type R (Australia)
Power: 193 PS/189 hp (141 kW) @ 8200 rpm & 127 ft•lbf/172 N•m @ 7500 rpm
B20 Series
B20B
1996-1998 specs
NON-VTEC
Found in: USDM and JDM Honda CR-V, Honda Orthia
Displacement: 1,973 cc (120.4 cu in)
Power: 126 hp (94 kW)) @ 5400 rpm
Torque: 131 ft•lbf (178 N•m) @ 4300 rpm
Rod length: 137 mm (5.4 in)
Compression: 8.8:1
Bore: 84 mm (3.3 in)
Stroke: 89 mm (3.5 in)
Redline: 6300 rpm
B20B / B20Z
1999 - 2001 specs
NON-VTEC
Found in: USDM CRV as a B20Z, JDM Honda CR-V and Honda Orthia as a B20B
Displacement: 1,973 cc (120.4 cu in)
Power: 146 hp (109 kW)) @ 5400 rpm
Torque: 133 ft•lbf (180 N•m) @ 4300 rpm
Rod length: 137 mm (5.394 in)
Compression: 9.6:1
Bore: 84 mm (3.3 in)
Stroke: 89 mm (3.5 in)
Redline: 6300 rpm
B16A
Note: All JDM B16A engines are stamped ‘B16A’ (with no number after the “A” to identify version).
JDM - JAPANESE DOMESTIC MARKET, BARANG KERETA YANG HANYA UNTUK KEGUNAAN DALAM JEPUN SAHAJA N BUKAN UNTUK DIESKPORT...JDM KE MALAYSIA MELALUI HALF-CUT
VTEC
Found in:
1988-1991 JDM Honda Integra RSi/XSi (DA6/DA8)
1988-1991 JDM Honda CRX SiR (EF8)
1988-1991 JDM Honda Civic SiR (EF9)
Displacement: 1,595 cc (97.3 cu in) 1.6 liter
Compression: 10.2:1
Rod/stroke ratio: 1.74
Power: 158 hp (118 kW) @ 7600 rpm & 111 ft•lbf (150 N•m) @ 7000 rpm
Transmission: S1/J1/Y1
Redline: 8200 rpm
1992-1996 JDM Honda CR-X del Sol SiR (EG2)
1992-2000 JDM Honda Civic SiRII (EG6/EG9/EK4)
Displacement: 1,595 cc (97.3 cu in)
Compression: 10.4:1
Power: 170 hp (130 kW) @ 7800 rpm & 116 ft•lbf (157 N•m) @ 7300 rpm
Valve Lift: IN 10.7 mm (0.42 in), EX 9.4 mm (0.37 in)
Inlet Valve Diamter: 33 by 2 millimetres (1.3 in × 0.079 in)
Transmission: S4C/Y21 (Some with LSD)
Redline: 8200 rpm
B16A1
VTEC
Found in:
1990-1991 EDM Honda CRX 1.6i-VT (EE8)
1990-1991 EDM Honda Civic 1.6i-VT (EE9)
Displacement: 1,595 cc (97.3 cu in) 1.6 liter
Bore×Stroke: 81.0×77.4 mm (3.19×3.05 in)
Compression: 10.2:1
Power: 150 hp (110 kW) @ 7600 rpm
Torque: 111 ft•lbf (150 N•m) @ 7000 rpm
Redline: 8200 rpm
Transmission: y2
B16A2
VTEC
Found in:
1992-2000 Honda Civic EDM VTi (EG6/EG9 & EK4)
1992-1997 Honda Civic del Sol EDM VTi (EG)
1999-2000 Honda Civic USDM Si (EM1)
1999-2000 Honda Civic CAN SIR EJ
Displacement: 1,595 cc (97.3 cu in)
Bore×Stroke: 81.0×77.4 mm (3.19×3.05 in)
Compression: 10.2:1
Power: 160 hp (118 kW) @ 7600 rpm & 111 ft•lbf (151 N•m) @ 7000 rpm
Transmission: Y21 or S4C
B16A3
VTEC
Found in:
1994-1995 Del Sol VTEC
Displacement 1,595 cc (97.3 cu in)
Power (bhp@rpm): 160 hp (120 kW) @ 7,600 rpm & 118 ft•lbf (160 N•m) @ 7,500 rpm
Transmission: Y21
B16A4
VTEC
Found in:
1996-2000 Honda Civic SiRII (Asian version) (EK4)
Displacement: 1,595 cc (97.3 cu in)
Compression: 10.4:1
Power: 170 hp (127 kW) @ 7800 rpm & 116 ft•lbf (157 N•m) @ 7300 rpm
Redline: 8200 rpm
Transmission: Y21
B16A6
VTEC
Found in:
1996-2000 Honda Civic - Middle East & South Africa VTEC (EK)
Displacement: 1,595 cc (97.3 cu in)
Compression: 10.2:1
Power: 158 hp (118 kW) @ 7600 rpm & 111 ft•lbf (151 N•m) @ 7000 rpm
Transmission: S4C
B16B (Type R) VTEC
Found in:
1997-2000 JDM Civic Type R[EK9]
Displacement: 1,595 cc (97.3 cu in)
Compression: 10.8:1
Bore: 81 mm (3.2 in)
Stroke: 77.4 mm
Rod/Stroke ratio: 1.84:1
Rod Length: 142.42 mm (5.607 in)
Power: 185 hp (134 kW) @ 8200 rpm & 110 ft•lbf (155 Nm) @ 7500 rpm
Redline: 8500 rpm
Transmission: S4C With LSD
Vtec engagement @ 5,800 rpm
Note: This engine uses the same block as the Integra Type R, which is taller than the B16a block, but with a crank the same stroke as the b16a. It uses longer rods to accommodate for this, which is why the Rod/Stroke ratio is higher than a standard B16. It is basically a ‘Destroked B18C Type R engine’
B18 Series
B18C (Type R)
VTEC
Found in:
JDM Honda Integra Type R
Power: 200 hp (150 kW) @ 8000 rpm
Rev-limit: 8,900 rpm
VTEC engagement@5,800 rpm
137 ft•lbf (186 N•m) @ 6200 rpm
Transmission Type: 5-speed standard with LSD
Displacement: 1,797 cc (109.7 cu in)
Compression:y 11.1:1
Bore: 81 mm (3.189 in)
Stroke: 87.2 mm (3.433 in)
Rod Length: 137.9 mm (5.429 in)
Rod/Stroke Ratio: 1.58
Transmission: J4D (96specR w/ LSD)N3E (98specR w/LSD)
B18C1
VTEC
Found in:
1994-2001 Acura Integra GS-R (DC2)
Redline: 8000 rpm (limiter @ 8200 rpm)
Power: 170 hp (127 kW) @ 7600 rpm & 128 ft•lbf (173 N•m) @ 6200 rpm
Transmission: s80
B18C2
VTEC
Found in:
1994-1999 Honda Integra VTi-R
AUDM Spec 1993-1999 Honda Integra VTi-R
Displacement: 1,797 cc (109.7 cu in)
Compression: 10.6:1
Power: 168 hp (125 kW) @ 7600 rpm
Torque: 128 ft•lbf (175 N•m) @ 6200 rpm
Redline: 8200 rpm
Fuel Cut: 8300 rpm
Transmission: Y80 (No LSD) 5-Speed Manual Transaxle
0-100 km/h : <7.3 seconds
B18C3
VTEC
Found in:
1995-1998 Acura Integra Type R
Power: 193 PS/189 hp (141 kW) @ 8200 rpm & 127 ft•lbf/172 N•m @ 7500 rpm
B18C4
VTEC
Found in:
1996-2000 UK Civic 1.8i VTi 5-door Hatch (MB6)
1996-2000 UK Civic Aerodeck 1.8i VTi 5-door Wagon (MC2)
1998-1999 EU Civic Aerodeck 1.8i VTi 5-door Wagon (MC2)
1998-1999 EU Civic 1.8i VTi 5-door Hatch (MB6)
Displacement: 1,797 cc (109.7 cu in)
VTEC engagement@4,400 rpm
IAB open@5,750 rpm
Compression: 10.0:1
Power: 169 hp (124 kW) @ 7600 rpm & 117 ft•lbf (158 N•m) @ 6200 rpm
Limit: 8,100 rpm
Transmission: S9B w/Torsen LSD.
0/100 km/h : 8.3 seconds (8.8 Aerodeck)
B18C5
VTEC
Found in: USDM DC2 Acura Integra Type-R (Integra Type-R)
1997-2001 Integra Type-R (**Note: This model was not produced for the 1999 production year)
Displacement: 1,797 cc (109.7 cu in)
Compression: 10.6:1
Bore: 81 mm (3.189 in)
Stroke: 87.2 mm (3.433 in)
Rod Length: 137.9 mm (5.429 in)
Rod/Stroke Ratio: 1.58
Power: 195 hp (145 kW) @ 8200 rpm & 130 ft•lbf (180 N•m) @ 7500 rpm
Transmission: S80 w/LSD
Vtec engagement @ 6,000 rpm
B18C6
VTEC
Found in:
1998-2001 Honda Integra UK and Euro Spec Type R
Type: 1.8 litre 16v DOHC 4 cylinder in-line
Displacement: 1,797 cc (109.7 cu in)
Compression: 11.1:1
Air intake diameter: 62 mm (2.4 in)
Bore: 81 mm (3.189 in)
Stroke: 87.2 mm (3.433 in)
Rod Length: 137.9 mm (5.429 in)
Rod/Stroke Ratio: 1.58
Power: 190 PS/140 kW @ 7900 rpm & 131 ft•lbf/178 N•m @ 7300 rpm
Redline: 8400 rpm
Rev limiter: 8700 rpm
Vtec engagement: 5700 rpm
Transmission: S80 w/LSD
B18C7
VTEC
Found in:
1996- Honda Integra Type R (Australia)
Power: 193 PS/189 hp (141 kW) @ 8200 rpm & 127 ft•lbf/172 N•m @ 7500 rpm
B20 Series
B20B
1996-1998 specs
NON-VTEC
Found in: USDM and JDM Honda CR-V, Honda Orthia
Displacement: 1,973 cc (120.4 cu in)
Power: 126 hp (94 kW)) @ 5400 rpm
Torque: 131 ft•lbf (178 N•m) @ 4300 rpm
Rod length: 137 mm (5.4 in)
Compression: 8.8:1
Bore: 84 mm (3.3 in)
Stroke: 89 mm (3.5 in)
Redline: 6300 rpm
B20B / B20Z
1999 - 2001 specs
NON-VTEC
Found in: USDM CRV as a B20Z, JDM Honda CR-V and Honda Orthia as a B20B
Displacement: 1,973 cc (120.4 cu in)
Power: 146 hp (109 kW)) @ 5400 rpm
Torque: 133 ft•lbf (180 N•m) @ 4300 rpm
Rod length: 137 mm (5.394 in)
Compression: 9.6:1
Bore: 84 mm (3.3 in)
Stroke: 89 mm (3.5 in)
Redline: 6300 rpm
Subscribe to:
Posts (Atom)
